ثريا معمارية مخصصة

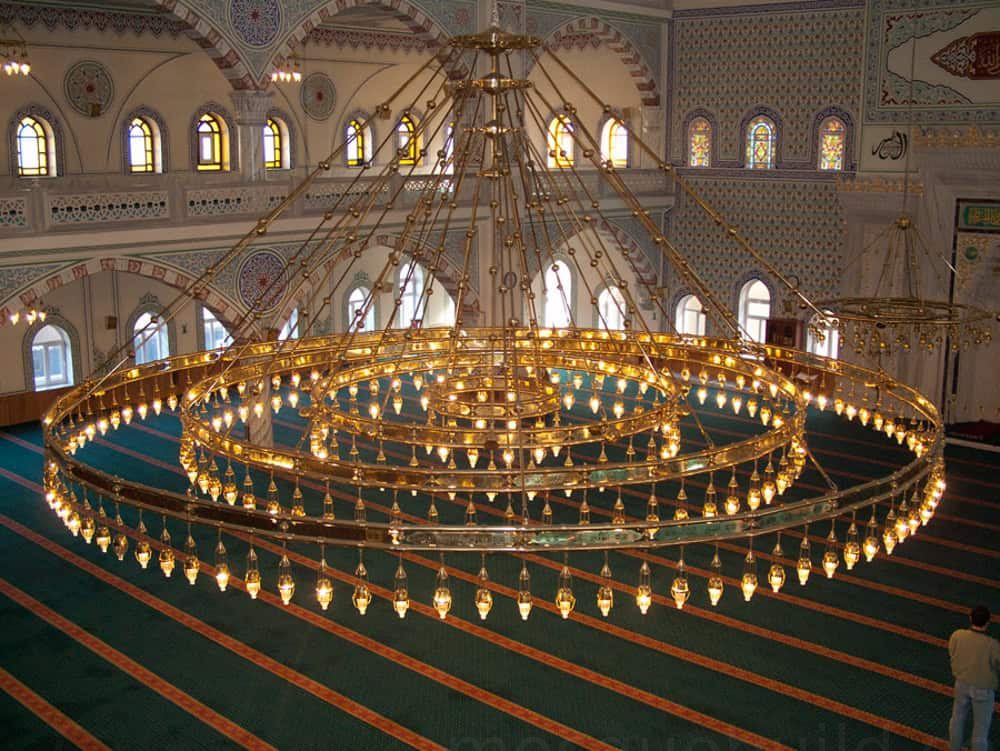

ثريا مسجد مخصصة مخصص – موديل CH-0009
ثريا مسجد مخصصة مخصص – موديل CH-0009 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes, surrounding construction, access requirements and approved samples.
Share architectural drawings, dimensions, elevations, sections and reference images for technical review and quotation for CH-0009.
Ring Distribution

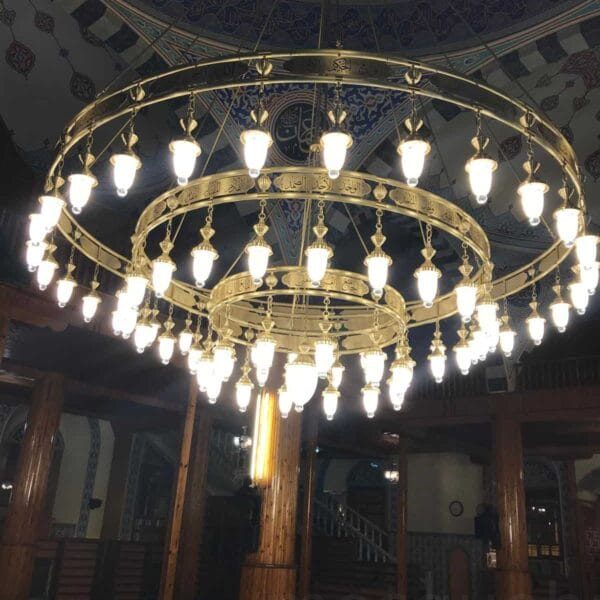

Similar Mosque Chandelier References
Selected mosque projects matched by chandelier form, scale and installation character.
1 photo
2 photos
2 photos
3 photos
2 photos
2 photos
1 photo
1 photo
2 photos
1 photo
المواصفات الفنيةFull project data+
Product Identity
- Product Family
- ثريات المساجد
- Chandelier TypeEstimated
- ثريا معمارية مخصصة
- أسلوب التصميم
- إسلامي مخصص
- Recommended Application
- ثريا مسجد مخصصة مخصص لمشروعات المساجد
- الإنتاج
- تصنيع حسب الطلب
Dimensions & Suspension
- القطر الإجماليEstimated
- 5000 mm
- الارتفاع الكليEstimated
- 2550 mm
- Body HeightEstimated
- 1350 mm
- Suspension DropEstimated
- 1200 mm
- Minimum DropEstimated
- 850 mm
- Maximum DropEstimated
- 2400 mm
- Ring / Tier CountEstimated
- 2
- Ring DiametersEstimated
- 5000, 3100 mm
- Lamps per RingEstimated
- 48, 26
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 350 mm
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Ring Vertical SpacingEstimated
- 700 mm
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 74
- Total PowerEstimated
- 518 W
- Total LumensEstimated
- 59644 lm
- System EfficacyEstimated
- 115.1 lm/W
- درجة حرارة اللونEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- التحكم في الوهجEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR Targetخاص بالمشروع
- Project specific; verify by photometric calculation
Materials & Finish
- Primary Metal
- هيكل معدني
- التشطيب
- تشطيب معدني مخصص
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- شريط الخطEstimated
- اختياري / يُحدد حسب المشروع
- Decorative Pattern
- هندسة زخرفية إسلامية
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Custom Islamic composition using islamic decorative geometry
Planning & Installation
- Reference Hall WidthEstimated
- 24 m
- Reference Hall LengthEstimated
- 24 m
- Mounting HeightEstimated
- 10 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 131 m²
- Estimated AverageEstimated
- 46 lx
- Assembly
- تصنيع معدني مخصص
- نطاق أعمال التركيبخاص بالمشروع
- Coordinated after verified site measurements and approved drawings
- Electrical Coordinationخاص بالمشروع
- Required with the project electrical and lighting design
- Ceiling Coordinationخاص بالمشروع
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample Statusخاص بالمشروع
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
- الشحن
- تخطيط التصدير متاح
Technical DocumentsDrawings, installation and certificates+
Product description +
Custom Mosque Chandelier – Model CH-0009 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes, surrounding…
Planning notes +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Materials & finish +
Primary metal: Metal Structure. Finish: Custom Metal Finish. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom Metal Fabrication. Installation scope: Coordinated after verified site measurements and approved drawings.
Warranty & care +
Warranty terms and final care instructions are confirmed in the approved quotation/contract and final material schedule.
