Contemporary architectural chandelier

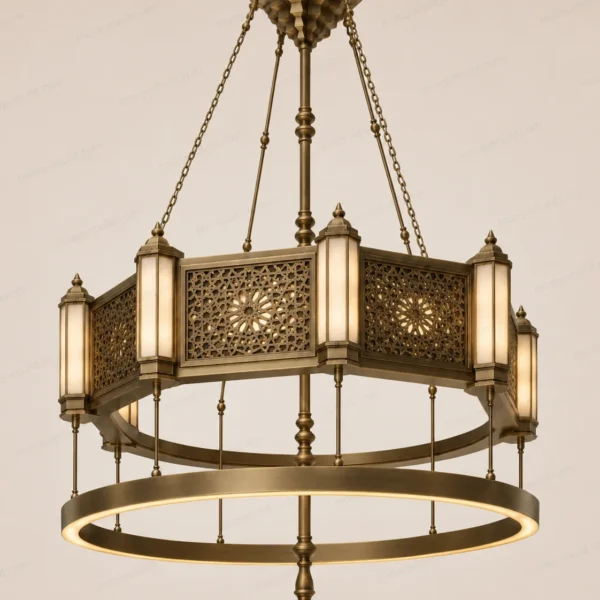

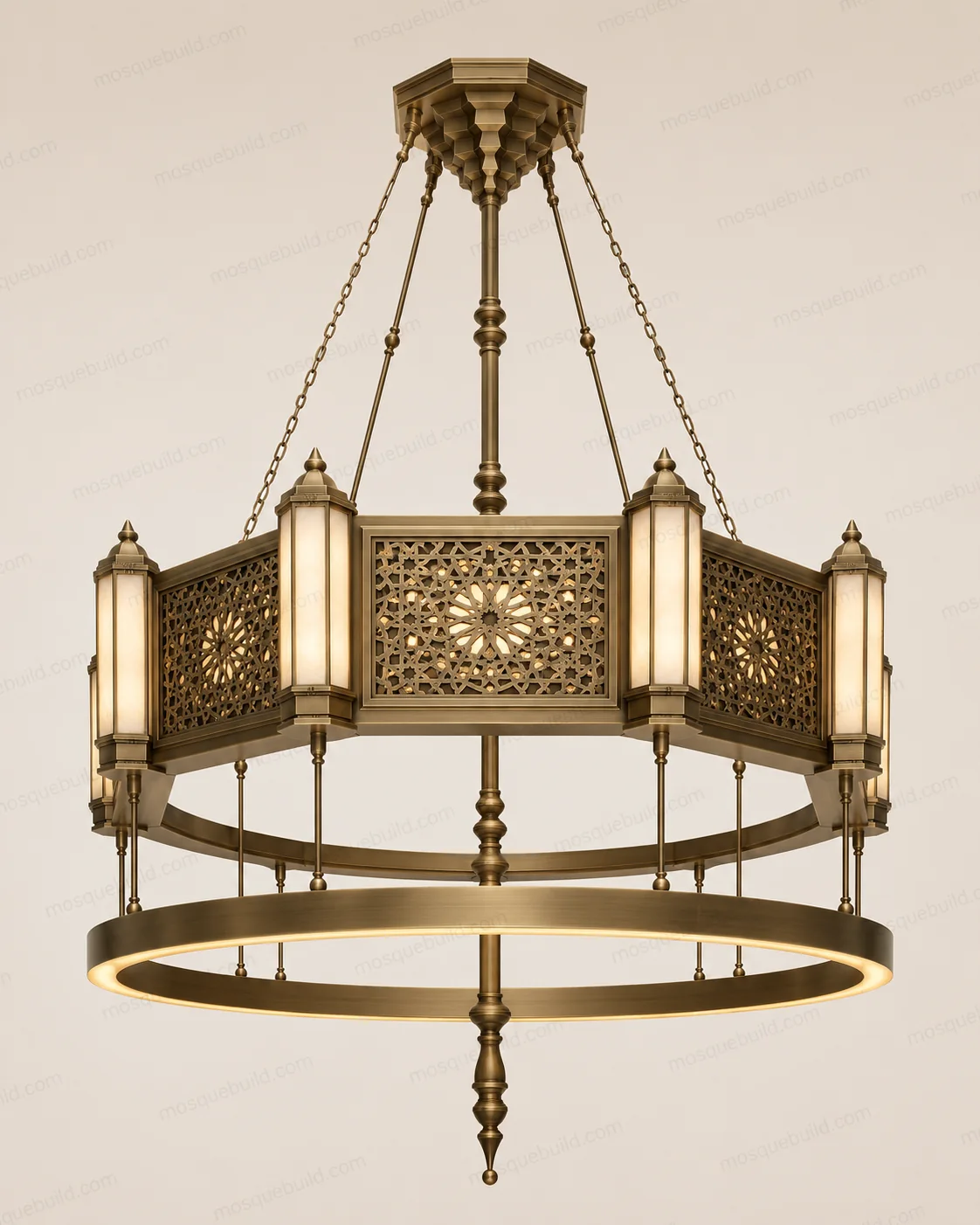

Contemporary Modern Islamic Mosque Chandelier – Model CHD-260816-004
Contemporary Modern Islamic Mosque Chandelier – Model CHD-260816-004 is a made-to-order mosque chandelier concept developed for custom mosque projects. The CHD-260816-004 design balances Islamic architectural character, project-specific proportions and coordinated detailing. Materials, finish, dimensions and installation details are confirmed after project measurements and design approval. Worldwide project delivery can be planned by MosqueBuild.
Ring Distribution
Project-specific chandelier options
Selections are design discussion inputs; final dimensions and loads require approved drawings.
Suspension
Adjust suspension height and cable arrangement.
Finish & Calligraphy
Choose a finish family and calligraphy treatment.
Lighting Package
Verified lamp data drives every calculated total.
- Source
- Replaceable LED filament lamp
- Per lamp
- 7 W · 806 lm
- Control
- Lamp-integrated electronic driver
Technical Overview
- Overall DiameterEstimated
- 6000 mm
- Overall HeightEstimated
- 3200 mm
- Approx. WeightEstimated
- 300 kg
- Ring / Tier CountEstimated
- 3
- Suspension StyleEstimated
- Conical multi-point cable suspension
Lighting Performance
- Total LampsEstimated
- 114
- Total LumensEstimated
- 91884 lm
- Total PowerEstimated
- 798 W
- System EfficacyEstimated
- 115.10000000000001 lm/W
- Color RenderingEstimated
- Ra 90+
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
Materials & Finish
- Primary Metal
- Project-selected metal structure and lighting components
- Finish
- Project Specific
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-coordinated
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
Certifications
- IP RatingEstimated
- IP20 indoor planning basis
- Insulation ClassEstimated
- Class I planning basis
- Safety StandardProject Specific
- Project Specific
- ComplianceProject Specific
- Project Specific
- OriginEstimated
- Türkiye planning assumption; confirm quotation
Structural & Project Readiness
- Structural Design LoadProject Specific
- Project Specific
- Structural Safety FactorProject Specific
- Project Specific
- Anchorage SystemProject Specific
- Project Specific
- Structural ApprovalProject Specific
- Project Specific
- Approved Drawing Status
- Required before production
Product Identity
- Product Family
- Mosque Chandelier
- Chandelier TypeEstimated
- Contemporary architectural chandelier
- Design Style
- Contemporary Islamic / Architectural Lighting
- Recommended Application

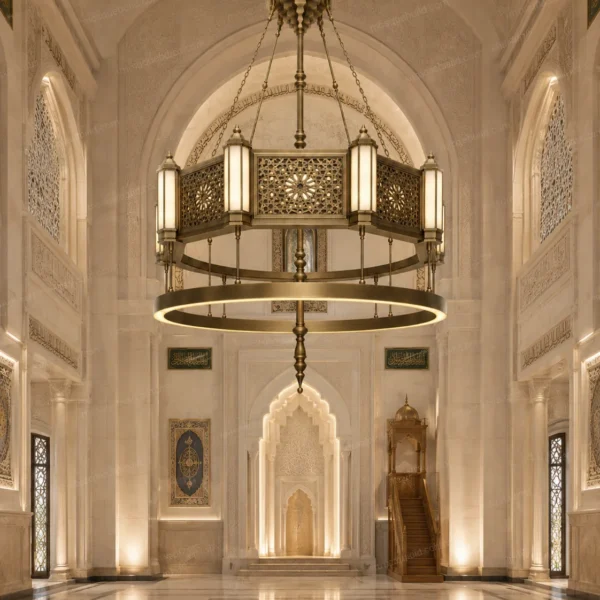

- Main Prayer Hall / Central Dome Zone
- Production
- Made to Order
Dimensions & Suspension
- Overall DiameterEstimated
- 6000 mm
- Overall HeightEstimated
- 3200 mm
- Body HeightEstimated
- 1800 mm
- Suspension DropEstimated
- 1400 mm
- Minimum DropEstimated
- 1000 mm
- Maximum DropEstimated
- 2800 mm
- Ring / Tier CountEstimated
- 3
- Ring DiametersEstimated
- 6000, 4100, 2400 mm
- Lamps per RingEstimated
- 56, 36, 22
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 350 mm
- Approx. WeightEstimated
- 300 kg
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Suspension PointsEstimated
- 12
- Ring Vertical SpacingEstimated
- 600, 600 mm
- Ceiling Canopy DiameterEstimated
- 950 mm
- Mounting Plate SizeEstimated
- 700 × 700 mm preliminary
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
- Maintenance Lowering SystemEstimated
- Optional motorized maintenance hoist
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 114
- Total PowerEstimated
- 798 W
- Total LumensEstimated
- 91884 lm
- System EfficacyEstimated
- 115.10000000000001 lm/W
- Color TemperatureEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- Planning Beam AngleEstimated
- 300 °
- Downlight RatioEstimated
- 0.55
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Rated LifetimeEstimated
- 25000 h
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR TargetProject Specific
- Project specific; verify by photometric calculation
- Photometry BasisEstimated
- AI lumen-method planning estimate; IES/LDT verification required
- Lumen MaintenanceEstimated
- L70 / 25,000 h planning assumption
Electrical & Compliance
- VoltageEstimated
- 220–240 V AC planning basis; confirm destination
- FrequencyEstimated
- 50 Hz
- IP RatingEstimated
- IP20 indoor planning basis
- Insulation ClassEstimated
- Class I planning basis
- Cable TypeEstimated
- LSZH copper cable; final section by electrical designer
- Circuit CountEstimated
- 2
- Power FactorEstimated
- 0.9
- Total Harmonic DistortionEstimated
- 15 %
- Surge ProtectionEstimated
- Type 2 SPD at distribution board; project coordinated
- Emergency Lighting IntegrationEstimated
- Optional separate emergency-lighting integration
- Driver Location / AccessEstimated
- At replaceable lamps / accessible circuit points
- Operating TemperatureEstimated
- 0 °C to +40 °C planning range
Materials & Finish
- Primary Metal
- Project-selected metal structure and lighting components
- Finish
- Project Specific
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-coordinated
- Decorative Pattern
- Islamic geometric lighting composition\, project specific
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Contemporary Islamic geometry integrated with the prayer-hall architecture
Planning & Installation
- Reference Hall WidthEstimated
- 28 m
- Reference Hall LengthEstimated
- 28 m
- Mounting HeightEstimated
- 12 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 202 m²
- Estimated AverageEstimated
- 52 lx
- Assembly
- Custom metal fabrication\, electrical assembly and architectural finishing
- Installation ScopeProject Specific
- Coordinated after verified site measurements and approved drawings
- Maintenance AccessEstimated
- Motorized lowering system or engineered maintenance platform
- Electrical CoordinationProject Specific
- Required with the project electrical and lighting design
- Ceiling CoordinationProject Specific
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample StatusProject Specific
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
- WarrantyEstimated
- 2 years planning assumption; confirm contract
- OriginEstimated
- Türkiye planning assumption; confirm quotation
- Shipping
- Worldwide project delivery planning available after technical review
Technical Documents
Product description +
Contemporary Modern Islamic Mosque Chandelier – Model CHD-260816-004 is a made-to-order mosque chandelier concept developed for custom mosque projects. The CHD-260816-004 design balances Islamic architectural character, project-specific proportions and coordinated detailing. Materials, finish, dimensions and installation details are confirmed after project measurements and design approval. Worldwide project delivery can be planned by MosqueBuild.
Technical assumptions +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Material & finish options +
Primary metal: Project-selected metal structure and lighting components. Finish: Project Specific. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom metal fabrication\, electrical assembly and architectural finishing. Installation scope: Coordinated after verified site measurements and approved drawings. Maintenance access: Motorized lowering system or engineered maintenance platform.
Warranty & care +
Warranty: 2 years planning assumption; confirm contract. Final care instructions are supplied with the approved material and finish schedule.
