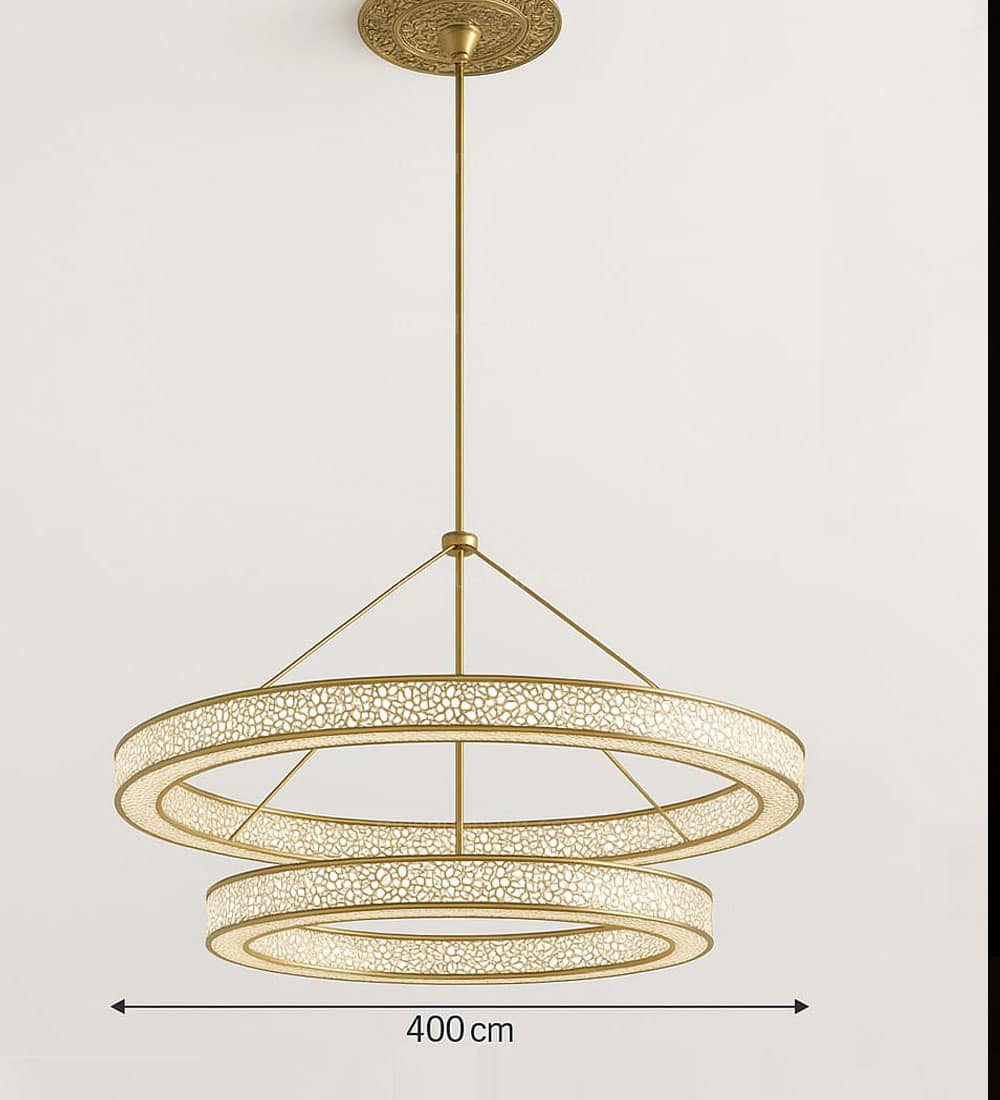

Dome Custom Mosque Chandelier – Model CH-0031
Dome Custom Mosque Chandelier – Model CH-0031 is a made-to-order mosque chandelier reference for prayer halls and dome interiors. Diameter, height, ring or tier layout, finish, light-point arrangement and suspension are finalized from approved project drawings. Electrical load, voltage and structural fixing are confirmed before production.
Ring Distribution
Similar Mosque Chandelier References
Selected mosque projects matched by chandelier form, scale and installation character.
2 photos
2 photos
1 photo
2 photos
3 photos
2 photos
1 photo
1 photo
2 photos
1 photo
Technical SpecificationsFull project data+
Product Identity
- Product Family
- Mosque Chandelier
- Chandelier TypeEstimated
- Dome chandelier
- Design Style
- Custom Islamic
- Recommended Application
- Main Prayer Hall / Dome
- Production
- Made to Order
Dimensions & Suspension
- Overall DiameterEstimated
- 7050 mm
- Overall HeightEstimated
- 4500 mm
- Body HeightEstimated
- 2600 mm
- Suspension DropEstimated
- 1900 mm
- Minimum DropEstimated
- 1350 mm
- Maximum DropEstimated
- 3800 mm
- Ring / Tier CountEstimated
- 4
- Ring DiametersEstimated
- 7050, 5225, 3425, 1825 mm
- Lamps per RingEstimated
- 72, 56, 36, 20
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 300 mm
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Ring Vertical SpacingEstimated
- 650, 650, 650 mm
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 184
- Total PowerEstimated
- 1288 W
- Total LumensEstimated
- 148304 lm
- System EfficacyEstimated
- 115.1 lm/W
- Color TemperatureEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR TargetProject Specific
- Project specific; verify by photometric calculation
Materials & Finish
- Primary Metal
- Metal Structure
- Finish
- Custom Metal Finish
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-selected
- Decorative Pattern
- Islamic Decorative Geometry
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Custom Islamic composition using islamic decorative geometry
Planning & Installation
- Reference Hall WidthEstimated
- 32 m
- Reference Hall LengthEstimated
- 32 m
- Mounting HeightEstimated
- 14 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 326 m²
- Estimated AverageEstimated
- 64 lx
- Assembly
- Custom Metal Fabrication
- Installation ScopeProject Specific
- Coordinated after verified site measurements and approved drawings
- Electrical CoordinationProject Specific
- Required with the project electrical and lighting design
- Ceiling CoordinationProject Specific
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample StatusProject Specific
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
- Shipping
- International delivery support available
Technical DocumentsDrawings, installation and certificates+
Product description +
Dome Custom Mosque Chandelier – Model CH-0031 is a made-to-order mosque chandelier reference for prayer halls and dome interiors. Diameter, height, ring or tier layout, finish, light-point arrangement and suspension are finalized from approved project drawings. Electrical load, voltage and structural fixing are confirmed before production.
Planning notes +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Materials & finish +
Primary metal: Metal Structure. Finish: Custom Metal Finish. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom Metal Fabrication. Installation scope: Coordinated after verified site measurements and approved drawings.
Warranty & care +
Warranty terms and final care instructions are confirmed in the approved quotation/contract and final material schedule.
