Classical luxury chandelier
Luxury Custom Mosque Chandelier – Model CH-0024
Technical Specifications
- Model
- MB-CH-0024
- Configuration
- Classical luxury chandelier
- Material
- Metal Structure
- Colour / finish
- Custom Metal Finish
- Surface
- Decorative Metalwork
- Decorative pattern
- Islamic Decorative Geometry
- Sizing
- Made to measure
Specifications shown are based on the product catalogue. Final materials, dimensions and production details are confirmed in the approved project quotation.
Ring Distribution

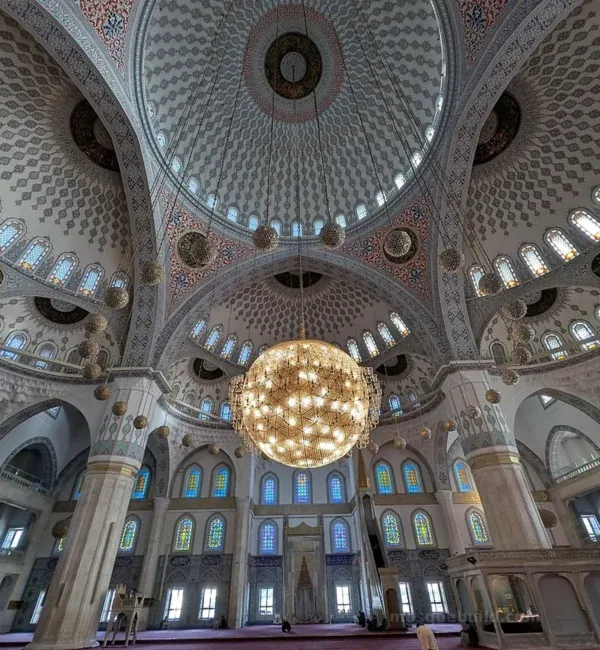

Similar Mosque Chandelier References
Selected mosque projects matched by chandelier form, scale and installation character.
1 photo
2 photos
2 photos
2 photos
3 photos
2 photos
1 photo
1 photo
2 photos
1 photo
Technical SpecificationsFull project data+
Product Identity
- Product Family
- Mosque Chandelier
- Chandelier TypeEstimated
- Classical luxury chandelier
- Design Style
- Classical Islamic
- Recommended Application
- Main Prayer Hall / Dome
- Production
- Made to Order
Dimensions & Suspension
- Overall DiameterEstimated
- 7700 mm
- Overall HeightEstimated
- 4800 mm
- Body HeightEstimated
- 2800 mm
- Suspension DropEstimated
- 2000 mm
- Minimum DropEstimated
- 1400 mm
- Maximum DropEstimated
- 4000 mm
- Ring / Tier CountEstimated
- 4
- Ring DiametersEstimated
- 7700, 5700, 3900, 2300 mm
- Lamps per RingEstimated
- 86, 60, 44, 24
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 290 mm
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Ring Vertical SpacingEstimated
- 700, 700, 700 mm
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 214
- Total PowerEstimated
- 1498 W
- Total LumensEstimated
- 172484 lm
- System EfficacyEstimated
- 115.1 lm/W
- Color TemperatureEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR TargetProject Specific
- Project specific; verify by photometric calculation
Materials & Finish
- Primary Metal
- Metal Structure
- Finish
- Custom Metal Finish
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-selected
- Decorative Pattern
- Islamic Decorative Geometry
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Classical Islamic visual richness with project-coordinated decorative density
Planning & Installation
- Reference Hall WidthEstimated
- 34 m
- Reference Hall LengthEstimated
- 34 m
- Mounting HeightEstimated
- 15 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 379 m²
- Estimated AverageEstimated
- 66 lx
- Assembly
- Custom Metal Fabrication
- Installation ScopeProject Specific
- Coordinated after verified site measurements and approved drawings
- Electrical CoordinationProject Specific
- Required with the project electrical and lighting design
- Ceiling CoordinationProject Specific
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample StatusProject Specific
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
- Shipping
- International delivery support available
Technical DocumentsDrawings, installation and certificates+
Product description +
Technical SpecificationsModelMB-CH-0024ConfigurationClassical luxury chandelierMaterialMetal StructureColour / finishCustom Metal FinishSurfaceDecorative MetalworkDecorative patternIslamic Decorative GeometrySizingMade to measureSpecifications shown are based on the product catalogue. Final materials, dimensions and production details are confirmed in the approved project quotation.
Planning notes +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Materials & finish +
Primary metal: Metal Structure. Finish: Custom Metal Finish. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom Metal Fabrication. Installation scope: Coordinated after verified site measurements and approved drawings.
Warranty & care +
Warranty terms and final care instructions are confirmed in the approved quotation/contract and final material schedule.
