Contemporary custom chandelier

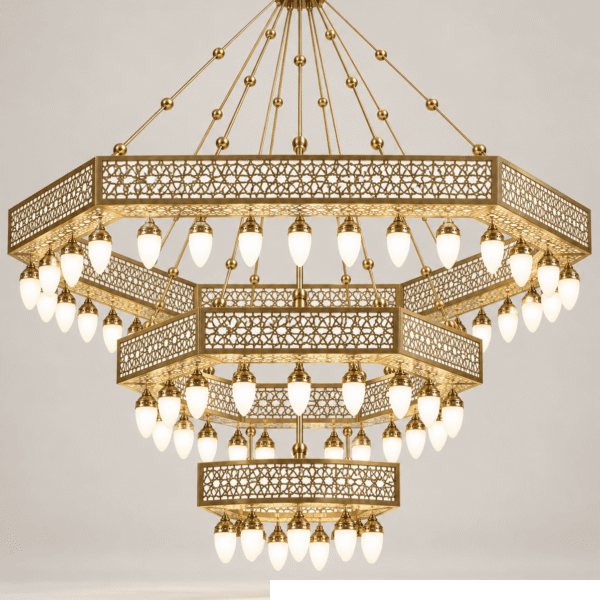

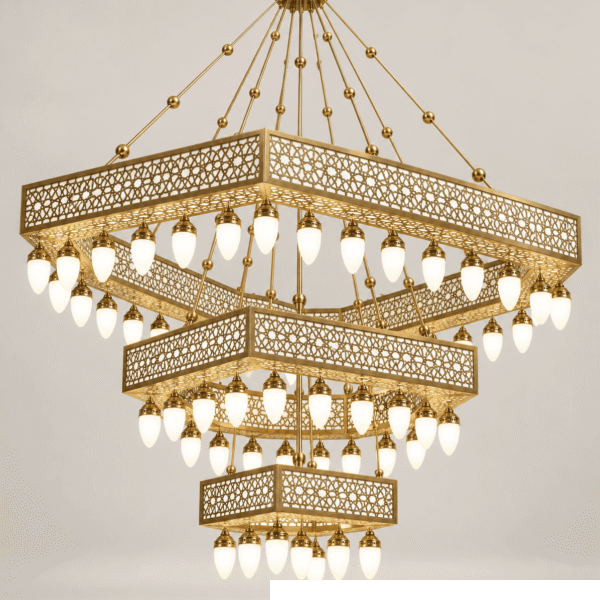

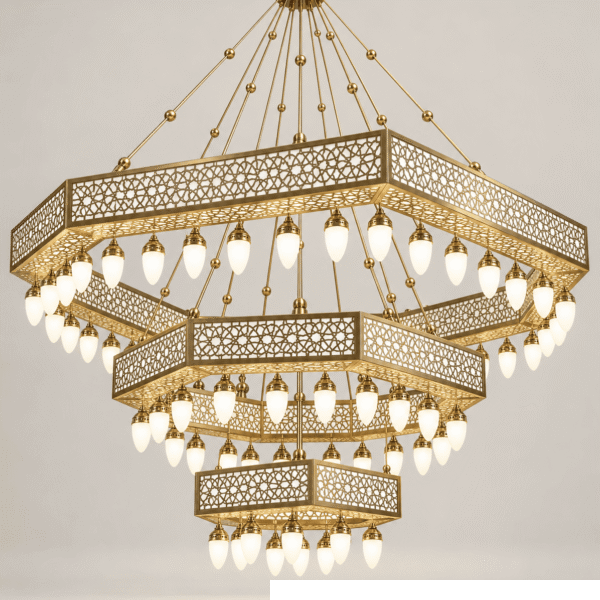

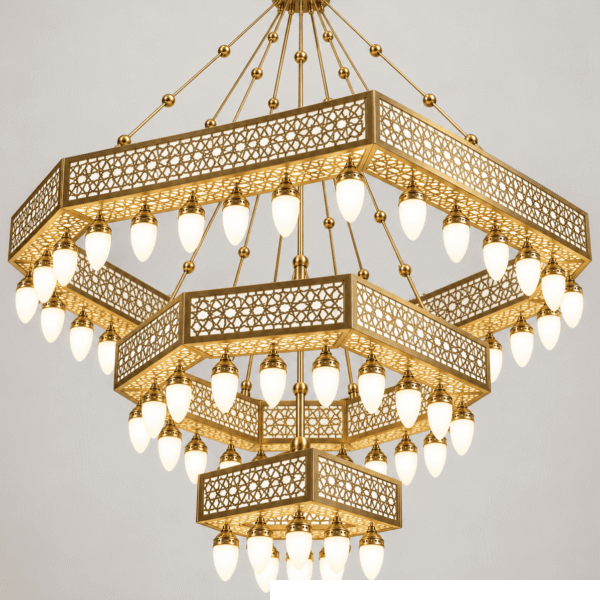

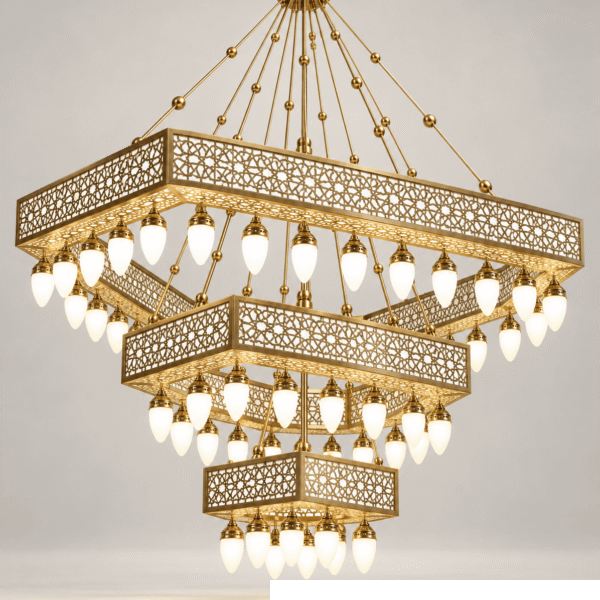

Modern Custom Mosque Chandelier – Model CH-0003
Modern Custom Mosque Chandelier – Model CH-0003 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes, surrounding construction, access requirements and approved samples.
Share architectural drawings, dimensions, elevations, sections and reference images for technical review and quotation for CH-0003.
Ring Distribution
Similar Mosque Chandelier References
Selected mosque projects matched by chandelier form, scale and installation character.
3 photos
1 photo
2 photos
2 photos
2 photos
2 photos
1 photo
1 photo
2 photos
1 photo
Technical SpecificationsFull project data+
Product Identity
- Product Family
- Mosque Chandelier
- Chandelier TypeEstimated
- Contemporary custom chandelier
- Design Style
- Modern Islamic
- Recommended Application
- Main Prayer Hall / Dome
- Production
- Made to Order
Dimensions & Suspension
- Overall DiameterEstimated
- 5350 mm
- Overall HeightEstimated
- 2850 mm
- Body HeightEstimated
- 1550 mm
- Suspension DropEstimated
- 1300 mm
- Minimum DropEstimated
- 900 mm
- Maximum DropEstimated
- 2600 mm
- Ring / Tier CountEstimated
- 3
- Ring DiametersEstimated
- 5350, 3775, 2275 mm
- Lamps per RingEstimated
- 48, 36, 20
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 350 mm
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Ring Vertical SpacingEstimated
- 500, 500 mm
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 104
- Total PowerEstimated
- 728 W
- Total LumensEstimated
- 83824 lm
- System EfficacyEstimated
- 115.1 lm/W
- Color TemperatureEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR TargetProject Specific
- Project specific; verify by photometric calculation
Materials & Finish
- Primary Metal
- Metal Structure
- Finish
- Custom Metal Finish
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-selected
- Decorative Pattern
- Islamic Decorative Geometry
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Contemporary Islamic geometry integrated with the prayer-hall architecture
Planning & Installation
- Reference Hall WidthEstimated
- 26 m
- Reference Hall LengthEstimated
- 26 m
- Mounting HeightEstimated
- 11 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 184 m²
- Estimated AverageEstimated
- 55 lx
- Assembly
- Custom Metal Fabrication
- Installation ScopeProject Specific
- Coordinated after verified site measurements and approved drawings
- Electrical CoordinationProject Specific
- Required with the project electrical and lighting design
- Ceiling CoordinationProject Specific
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample StatusProject Specific
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
Technical DocumentsDrawings, installation and certificates+
Product description +
Modern Custom Mosque Chandelier – Model CH-0003 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes,…
Planning notes +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Materials & finish +
Primary metal: Metal Structure. Finish: Custom Metal Finish. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom Metal Fabrication. Installation scope: Coordinated after verified site measurements and approved drawings.
Warranty & care +
Warranty terms and final care instructions are confirmed in the approved quotation/contract and final material schedule.
