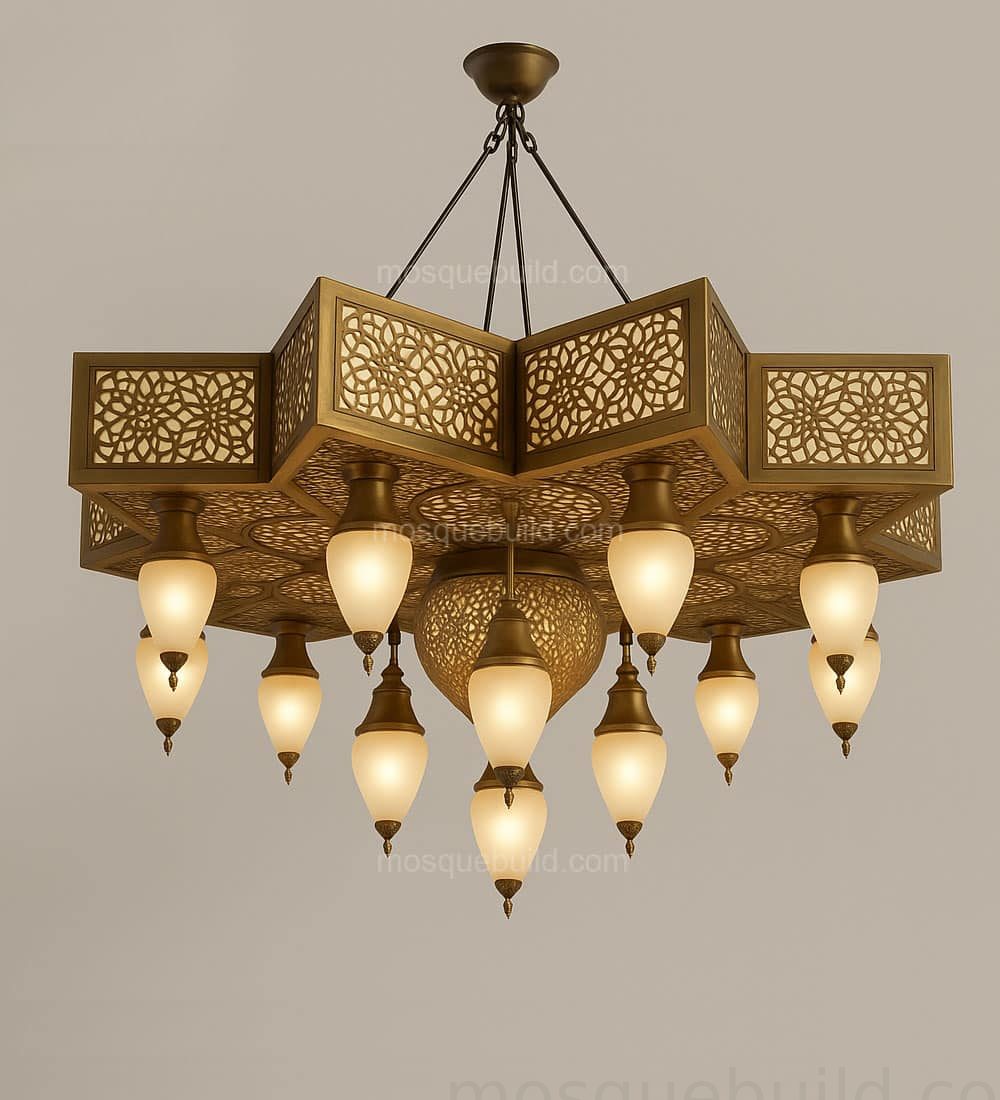

Custom Mosque Chandelier – Model CH-0034
Custom Mosque Chandelier – Model CH-0034 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes, surrounding construction, access requirements and approved samples.
Share architectural drawings, dimensions, elevations, sections and reference images for technical review and quotation for CH-0034.
Ring Distribution
Similar Mosque Chandelier References
Selected mosque projects matched by chandelier form, scale and installation character.
1 photo
2 photos
2 photos
3 photos
2 photos
2 photos
1 photo
1 photo
2 photos
1 photo
Technical SpecificationsFull project data+
Product Identity
- Product Family
- Mosque Chandelier
- Chandelier TypeEstimated
- Custom architectural chandelier
- Design Style
- Custom Islamic
- Recommended Application
- Main Prayer Hall / Dome
- Production
- Made to Order
Dimensions & Suspension
- Overall DiameterEstimated
- 5700 mm
- Overall HeightEstimated
- 3150 mm
- Body HeightEstimated
- 1750 mm
- Suspension DropEstimated
- 1400 mm
- Minimum DropEstimated
- 1000 mm
- Maximum DropEstimated
- 2800 mm
- Ring / Tier CountEstimated
- 3
- Ring DiametersEstimated
- 5700, 3900, 2300 mm
- Lamps per RingEstimated
- 56, 36, 22
- Center LampsEstimated
- 0
- Planning Lamp SpacingEstimated
- 330 mm
- Suspension StyleEstimated
- Conical multi-point cable suspension
- Ring Vertical SpacingEstimated
- 600, 600 mm
- Ceiling / Dome TypeEstimated
- High prayer hall / dome ceiling
Lighting Performance
- Light SourceEstimated
- Replaceable LED filament lamp
- Lamp HolderEstimated
- E27
- Power per LampEstimated
- 7 W
- Lumens per LampEstimated
- 806 lm
- Driver Loss AllowanceEstimated
- 0 %
- Total LampsEstimated
- 114
- Total PowerEstimated
- 798 W
- Total LumensEstimated
- 91884 lm
- System EfficacyEstimated
- 115.1 lm/W
- Color TemperatureEstimated
- 3000 K
- Color RenderingEstimated
- Ra 90+
- DimmingEstimated
- Phase-cut dimming, subject to lamp selection
- Driver / ControlEstimated
- Lamp-integrated electronic driver
- Light DistributionEstimated
- Symmetric direct / ambient distribution
- Glare ControlEstimated
- Opal/frosted lamp option with balanced ring spacing
- UGR TargetProject Specific
- Project specific; verify by photometric calculation
Materials & Finish
- Primary Metal
- Metal Structure
- Finish
- Custom Metal Finish
- Finish OptionsEstimated
- Custom metal finish selected during project approval
- DiffuserEstimated
- Frosted acrylic or opal glass option
- Calligraphy BandEstimated
- Optional / project-selected
- Decorative Pattern
- Islamic Decorative Geometry
- Crystal / GlassEstimated
- Optional optical glass or crystal accents
- Protective CoatingEstimated
- Powder coat or clear lacquer according to selected finish
- Decorative IntentEstimated
- Custom Islamic composition using islamic decorative geometry
Planning & Installation
- Reference Hall WidthEstimated
- 28 m
- Reference Hall LengthEstimated
- 28 m
- Mounting HeightEstimated
- 12 m
- Target IlluminanceEstimated
- 200 lx
- Utilization FactorEstimated
- 0.55
- Light Loss FactorEstimated
- 0.8
- Estimated CoverageEstimated
- 202 m²
- Estimated AverageEstimated
- 52 lx
- Assembly
- Custom Metal Fabrication
- Installation ScopeProject Specific
- Coordinated after verified site measurements and approved drawings
- Electrical CoordinationProject Specific
- Required with the project electrical and lighting design
- Ceiling CoordinationProject Specific
- Required with the dome / ceiling geometry and support structure
- Approved Drawing Status
- Required before production
- Material Sample StatusProject Specific
- Required for final material and finish where applicable
- Production Lead TimeEstimated
- 8–12 weeks after approved drawings
Technical DocumentsDrawings, installation and certificates+
Product description +
Custom Mosque Chandelier – Model CH-0034 is a MosqueBuild catalogue reference for a project-specific architectural lighting product. Final dimensions, materials, finishes, connection details and installation interfaces should be confirmed against approved drawings, verified site measurements and the project material schedule before production. This listing is intended to support design comparison, procurement and technical coordination without treating unverified catalogue assumptions as a fixed specification. The exact production scope may therefore change according to opening sizes, surrounding…
Planning notes +
Entered total power is retained as the authoritative value instead of a per-lamp calculation. Entered total lumens are retained as the authoritative value instead of a per-lamp calculation. Coverage and lux values use the lumen method; they are not an IES/LDT photometric report.
Materials & finish +
Primary metal: Metal Structure. Finish: Custom Metal Finish. Diffuser: Frosted acrylic or opal glass option.
Installation & support +
Assembly: Custom Metal Fabrication. Installation scope: Coordinated after verified site measurements and approved drawings.
Warranty & care +
Warranty terms and final care instructions are confirmed in the approved quotation/contract and final material schedule.
